VisionTek VT-7314NVR-P4 & VT-4442M-B1 Surveillance

The VisionTek VT-7314NVR-P4 Complete PoE Surveillance Kit delivers professional security without the professional price tag. This ready-to-deploy system includes four industrial 2MP IP cameras with rugged metal housings and 20-foot pre-terminated PoE cables for instant setup. NVR with 1TB storage, 4 weatherproof cameras, cables, and hardware - just unbox, connect, and secure your property in minutes. Enterprise-grade protection made simple.

Your complete professional surveillance solution is here! The VisionTek VT-7314NVR-P4 Kit includes 4x weatherproof PoE cameras with 20ft cables pre-terminated, metal casings for durability, and a powerful 4-channel PoE NVR (not a basic DVR!).

This plug-and-play system delivers Full HD video, PoE convenience, and robust outdoor performance in an integrated package.

Key Features

Network Video Recorder (VT-7314NVR-P4)

• 4-channel PoE NVR with independent 100Mbps PoE interfaces (IEEE 802.3af)

• Triple video format support: Ultra 265, H.265, and H.264 compression

• Dual monitor output: Simultaneous HDMI (up to 1080p) and VGA display

• High-capacity storage: 1 SATA interface supporting up to 8TB HDD

• Advanced recording: Up to 3MP resolution with ANR technology for network reliability

• Remote access: Supports 128 concurrent users with P2P, UPnP, and cloud upgrade

• ONVIF compliant: Works with third-party IP cameras (Profile S, G, C, Q, A, T)

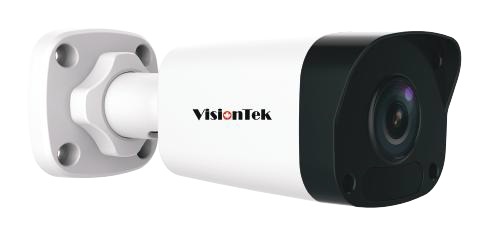

IP Camera (VT-4442M-B1)

• 2.0 megapixel CMOS sensor (1/2.7") delivering 1080p Full HD resolution

• Advanced night vision: 30m (98ft) IR range with SmartIR technology

• Wide 80.80 viewing angle with [email protected] lens

• Triple video streams: Main (1080p), sub (720p), and third (D1) streams

• Robust construction: IP67-rated weatherproof housing

• Enhanced imaging: DWDR, 2D/3D DNR, HLC, BLC, and day/night functionality

• Smart features: Motion detection (4 areas), privacy masking (8 areas), and ROI

Technical Specifications

NVR Specifications

• Video Input: 4 IP channels

• Bandwidth: 40Mbps incoming/outgoing

• Recording Resolution: 3MP/1080p/960p/720p/D1/2CIF/CIF

• Decoding Capability: 2x1080p@30 or 4x720p@30

• Interfaces:

  • 1xRJ-45 10M/100M Ethernet

  • 2xUSB 2.0

  • 4xPoE ports (max 30W/port, 54W total)

• Power: 48V DC (≤9W without HDD)

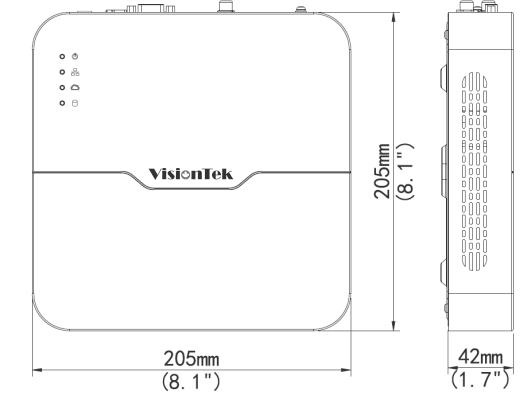

• Dimensions: 205x205x42mm (8.1x8.1x1.7")

• Weight: 0.59kg (1.3lb) without HDD

Camera Specifications

• Sensor: 1/2.7" progressive scan CMOS

• Minimum Illumination: 0.02 Lux (color/IR)

• Video Compression: Ultra 265/H.265/H.264/MJPEG

• Frame Rate: 30fps at all resolutions

• Network Protocols: IPv4, TCP/IP, HTTP, HTTPS, ONVIF

• Power: 12V DC or PoE (IEEE 802.3af, max 5.0W)

• Dimensions: 157.3x62.4x63mm (6.2x2.5x2.5")

• Weight: 0.45kg (0.99lb)

• Operating Temperature: -300C to +600C (-220F to 1400F)

Ideal Applications

This complete surveillance kit is perfect for:

• Small to medium business security

• Retail store monitoring

• Warehouse and inventory protection

• Residential property security

• Office building surveillance

• Outdoor perimeter monitoring

Why Choose VisionTek?

• Plug-and-play setup with integrated PoE

• Future-ready technology supporting Ultra 265 compression

• Reliable performance in extreme conditions (-300C to +600C)

• ONVIF compliant for system flexibility

• Cloud upgrade capability for easy maintenance

• Professional imaging features for superior video quality

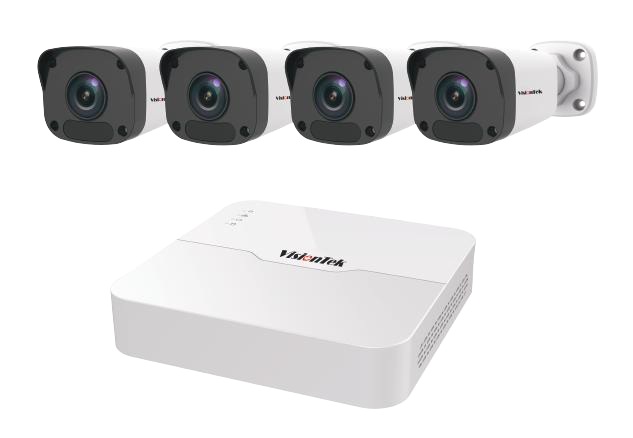

Package Includes

• 1xVT-7314NVR-P4 4-channel PoE NVR

• 4xVT-4442M-B1 2MP IP cameras

• All necessary mounting hardware and documentation
